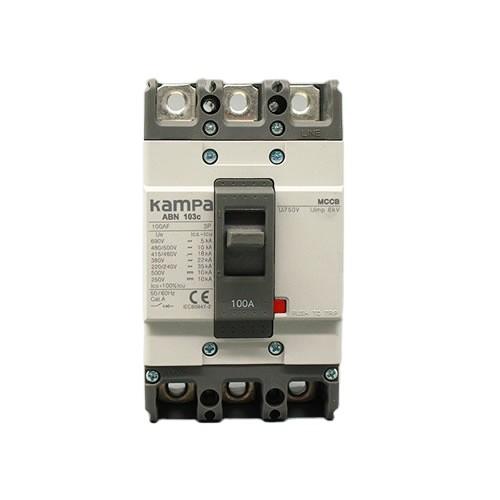

Molded Case Circuit Breakers Kampa ABN 103C 3P AC600V/DC250V MCCB

Name: Molded Case Circuit Breakers Kampa ABN 103C 3P AC600VDC250V MCCB
Brand: Kampa
Price: 10.00 USD

Wholesale Molded Case Circuit Breakers Kampa ABN 103C 3P AC600V/DC250V MCCB from china suppliers

Place of Origin : Zhejiang,China

Brand Name : Kampa

Model Number : ABN 103C

Product name : Molded Case Circuit Breakers Kampa ABN 103C 3P AC600V/DC250V MCCB

Frequency : 50/60Hz AC

rated working voltage : AC600V/DC250V

Type : Moulded Case

Poles Number : 3

Packaging Details : standard export carton packing.

Port : Ningbo

Supply Ability : 10000 Piece/Pieces per Month

MOQ : 100 Sets

Price : $10.00 - $11.00/Sets

Contact Now

Product Details

Type	2pole	SCM21-30E	SCM21-50E	SCM21-50S	SCM21-60E	SCM21-60S
Type		SCM21-30E	SCM21-50E	SCM21-50S	SCM21-60E	SCM21-60S	3pole
Frame size(AF)			30	50			60
Rated current(A)			5,10,15,20,30	5,10,15,20,30,40,50			60
Rated operational voltage(V)Ue(50/60Hz)			600	600	600	600	600
Rated insulation voltage(V)Ue(50/60Hz)			690	690	690	900	900
Rated impulse withstand voltage(kV)Uimp			6	6	6	6	6
Utimate breaking capacity (kA,Icu AC 50/60Hz)	220V/240V	10	10	25	10	25
		380V	7.5/5	7.5/5	14/10	7.5/5	14/10
		415V	7.5/5	7.5/5	14/10	7.5/5	14/10
		440V/460V	5	5	5	5	10
		480V/500V	2.5	2.5	2.5	2.5	7.5
		600V	2.5	2.5	2.5	2.5	5
Utilisation category			A	A	A	A	A
Endurance	Mechanical	8500	8500	8500	8500	8500
	Electrical	1500	1500	1500	1500	1500
Type	2pole	SCM21-100E	SCM21-100S	/	/	/	/
Type		SCM21-100E	SCM21-100S	3pole			SCM21-200E	SCM21-200S	SCM21-400E	SCM21-400S
Frame size(AF)			100			225			400
Rated current(A)			5,10,15,20,30, 40,50,60,75,100	15,20,30,40, 50,60,75,100	100,125,150,175,200,225		250,300,350,400
Rated operational voltage(V)Ue(50/60Hz)			600	600	600	600	600	600
Rated insulation voltage(V)Ue(50/60Hz)			690	690	690	690	690	690
Rated impulse withstand voltage(kV)Uimp			6	50	6	6	6	6
Utimate breaking capacity (kA,Icu AC 50/60Hz)	220V/240V	10	25	35	50	35	50
		380V	7.5/5	25	18	25	30	42
		415V	7.5/5	25	18	25	25	35
		440V/460V	5	25	18	25	25	35
		480V/500V	2.5	25	10	14	18	25
		600V	2.5	14	7.5	10.0	18	22
Utilisation category			A	A	A	A	A	A
Endurance	Mechanical	8500	8500	7000	7000	4000	4000
	Electrical	1500	1500	1000	1000	1000	1000

Molded Case Circuit Breakers Kampa ABN 103C 3P AC600V/DC250V MCCB

Packing & Transportation

Company Profile

Yueqing Kampa Electric Co., Ltd. is Established in 1990.Has variety of goods,such as Relay,Circuit breaker,Switching Power Supply,Time Relay,Distribution Box,Proximity Switch, temperature controller, contactor, solid state relay, Mould Case Circuit Breaker, hour meter, electric power relay and so on. Most of them are exported to Europe , America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. The enterprise has gained ISO9001, RVA Quality System Attestation (Netherlands),and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China, successively, and has been insured by PICC.

Certificate

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2009,sell to South America(00.00%),Africa(00.00%),Eastern Europe(00.00%),North America(00.00%),Southeast Asia(00.00%),Central America(00.00%),Domestic Market(00.00%),Mid East(00.00%),Western Europe(00.00%),Northern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Mould case circuit breaker,AC contactor,Residual current circuit breaker,Temperature controller,Relay

4. why should you buy from us not from other suppliers?
1. 15years' export experience. 2. We can help one electric shop to arrange the products. 3. OEM, ODM available. Quality product with Quality service. 7*24 hours standby. 4. Young sales but professional.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese

Molded Case Circuit Breakers Kampa ABN 103C 3P AC600V/DC250V MCCB Images
